irafhy::Formula Class Reference

#include <formula.h>

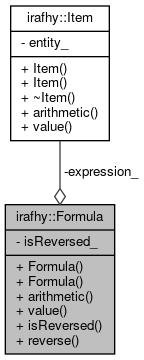

Collaboration diagram for irafhy::Formula:

Public Member Functions
	Formula ()=default
	constructor More...
	Formula (const Item &expression)
	constructor with given expression More...
std::function< capd::autodiff::Node(capd::autodiff::Node, capd::autodiff::Node[], int, capd::autodiff::Node[], int)>	arithmetic () const
	get the arithmetic function of the current formula More...
capd::interval	value (const capd::interval &t, const std::vector< capd::interval > &in, const std::vector< capd::interval > &params) const
	get the value of the current formula More...
bool	isReversed () const
	check if the vector was reversed or not More...
void	reverse () const
	reverse the direction of the vector More...

Private Attributes
Item	expression_
	expression of the formula More...
bool	isReversed_ = false
	indicate whether the direction of the vector reversed or not More...

Friends
std::ostream &	operator<< (std::ostream &out, const Formula &rhs)
	out the given formula to standard out stream More...

Constructor & Destructor Documentation

Formula() [1/2]

irafhy::Formula::Formula ( )

default

constructor

Formula() [2/2]

irafhy::Formula::Formula ( const Item &  expression )

explicit

constructor with given expression

Parameters

expression

given expression

References expression_.

Member Function Documentation

arithmetic()

std::function< capd::autodiff::Node(capd::autodiff::Node, capd::autodiff::Node[], int, capd::autodiff::Node[], int)> irafhy::Formula::arithmetic

(

)

const

get the arithmetic function of the current formula

Returns

the arithmetic function of the current formula

References irafhy::Item::arithmetic(), expression_, and isReversed_.

Here is the call graph for this function:

isReversed()

bool irafhy::Formula::isReversed

(

)

const

check if the vector was reversed or not

Returns

TRUE if the vector was reversed

References isReversed_.

reverse()

void irafhy::Formula::reverse

(

)

const

reverse the direction of the vector

References isReversed_.

value()

capd::interval irafhy::Formula::value	(	const capd::interval &	t,
		const std::vector< capd::interval > &	in,
		const std::vector< capd::interval > &	params
	)		const

get the value of the current formula

Parameters

t	time variable
in	values of the given variables
params	other necessary parameters

Returns

the value of the current expression

References expression_, isReversed_, and irafhy::Item::value().

Referenced by irafhy::UpdateFunction::update().

Here is the call graph for this function:

Friends And Related Function Documentation

operator<<

std::ostream& operator<< ( std::ostream &  out, const Formula &  rhs  )

friend

out the given formula to standard out stream

Parameters

out	given out stream
rhs	given formula

Returns

resulting out stream

Member Data Documentation

expression_

Item irafhy::Formula::expression_

private

expression of the formula

Referenced by arithmetic(), Formula(), irafhy::operator<<(), and value().

isReversed_

bool irafhy::Formula::isReversed_ = false

mutableprivate

indicate whether the direction of the vector reversed or not

Referenced by arithmetic(), isReversed(), irafhy::operator<<(), reverse(), and value().

---

The documentation for this class was generated from the following files:

• /home/jianqiang/CLionProjects/irafhy/include/irafhy/representation/formal/basic/formula.h
• /home/jianqiang/CLionProjects/irafhy/src/representation/formal/basic/formula.cpp
